| Model | HB-101S,M,L |
|---|---|
| Application | Species microorganism culture, cell culture, incubation test, germination test, constant temperature test etc. |
Application
Species microorganism culture, cell culture, incubation test, germination test, constant temperature test etc.
Feature
Precise temperature control is possible with the use of a digital P.I.D controller.

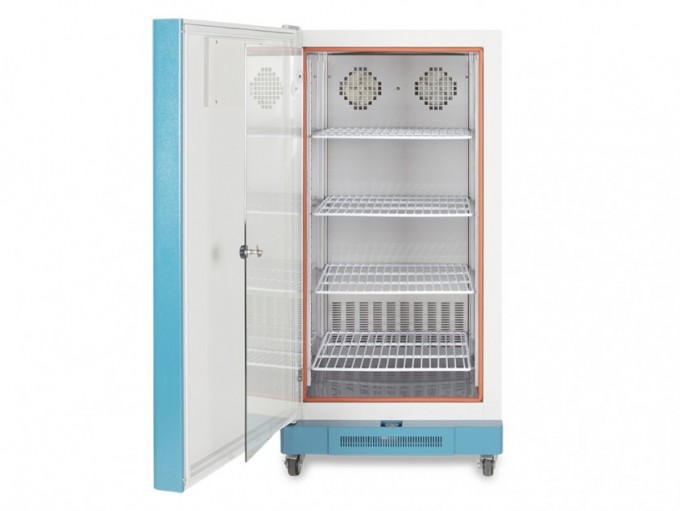

The inner door made of tempered glass allows a user to inspect the interior of the equipment.
Double packing ensures the gas tightness.
The temperature is maintained uniformly through the forced circulation method.
A device to prevent overheating prevention device is attached to prevent abnormal overheating of the device.
Computer-aided design (CAD) and computer-aided manufacturing (CAM).
Function
Timer Control
Auto Tuning
PID Controller
Temp. Adjust
A password function
Back-up Device
Specification

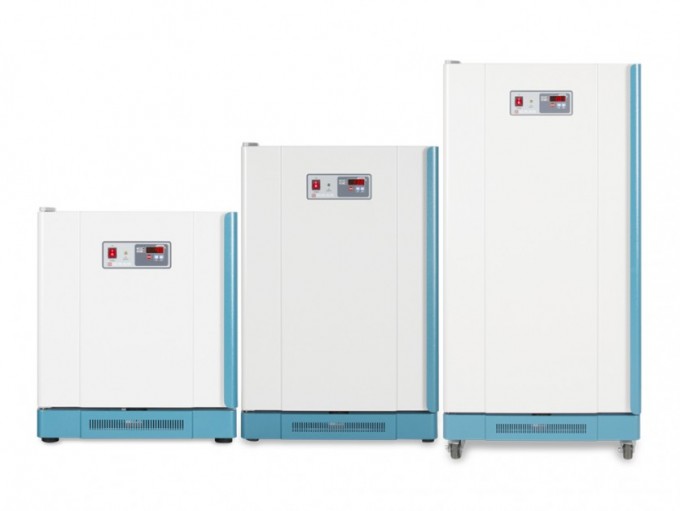

| Model | HB-101S | HB-101M | HB-101L |
| Dimension (in) | 450x450x450(h)mm | 480x450x700(h)mm | 500x500x1000(h)mm |
| Dimension (out) | 580x615x690(h)mm | 610x615x940(h)mm | 630x715x1290(h)mm |
| Capacity | 91 liter | 151 liter | 250 liter |
| Shelves | 2ea | 3ea | 4ea |
| Circulation fan | 1ea | 1ea | 2ea |
| Temp. Controller | Digital P.I.D controller | ||
| Temp. Range | Ambient +5℃ to 70℃ | ||
| Temp. Accuracy | ± 1℃ at 37℃ | ||
| Temp. Sensor | PT-100Ω, 0.15 grade | ||
| Timer | Digital timer 99hr 59min, or infinity | ||
| Material (in) | Stainless steel | ||
| Material (out) | Scp-1 with powder coating | ||
| Door | Double door, tempered safety glass inner door | ||
| Safety device | Hydraulic temperature controller | ||
| Packing (in/out) | Silicon rubber / magnetic packing | ||
| Power (AC 220v, 60hz) | 200w, 45kg | 300w, 65kg | 400w, 95kg |
* Optional accessories : 10 step program control (LCD display)
